Il Sacel Flowmeter is an innovative solution designed for heating and cooling systems, ideal for both polymer and metal manifolds. Thanks to the integrated graduated scale, it provides a direct and precise measurement of the flow in L/min, simplifying adjustment. Maintenance is facilitated by the removable transparent indicator, ensuring practical and reliable use. Designed to meet market standards, the flowmeter combines advanced functionality and a robust design for long-lasting performance. A perfect choice for achieving efficiency and comfort in any environment.

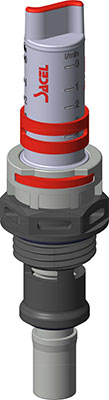

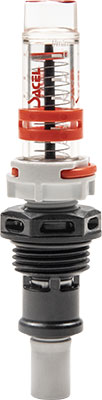

FLOWMETER FOR
SUPPLY 5 L/MIN
The manifold with the flowmeter installed must always be positioned
on the supply side, while the seat must be mounted on the return rail
of the connected hydraulic system.
Incorrect positioning of the manifold can cause system anomalies,
preventing the flowmeters from functioning properly, as they must
operate exclusively in suction mode.
PRESSURE DROP

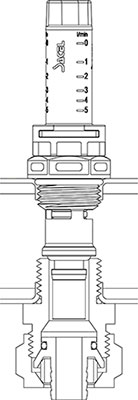

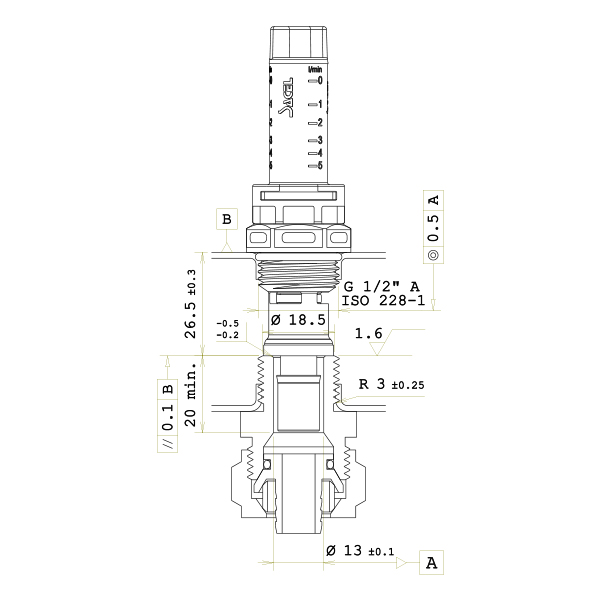

The kVS value is affected by the type of counterpart used and by the geometric configuration of the distributor. For this purpose, you will receive a drawing from us with the necessary connection dimensions.
FEATURES
1. Quick and accurate adjustment without using diagrams, tables, or measuring devices
2. The flow is displayed directly in l/min
3. The adjustment valve can be closed and the indicator can be disassembled during operation
4. Can be installed both horizontally and vertically.
PERFORMANCE
| Accepted fluid | Water and glycol solutions |
| % accepted glycol | 50% |
| Operating temperature | -5°C + 60°C |
| Max Temperature | 90°C at 3 bar |
| Working pressure | 0-6 bar |
| Max control pressure | 10 bar at 20°C |
| Burst pressure | > 30 bar |
| Reading scale | 0-5 l/min |
| Measurement accuracy (in case of antifreeze mixtures, viscosity must be observed) |
+/- 10% of the final value |
| Maximum torque to adjust the flow | > 0.1 Nm |
| Max tightening torque with the manifold | Max 10 Nm |
FLOW COEFFICIENT KV
With the flowmeter fully open: 1.12 KVS (m3/h)
MATERIALS
POM | PA12 | AISI302 | PA 6.6 GF30% | PA9T GF50 |
EPDM
